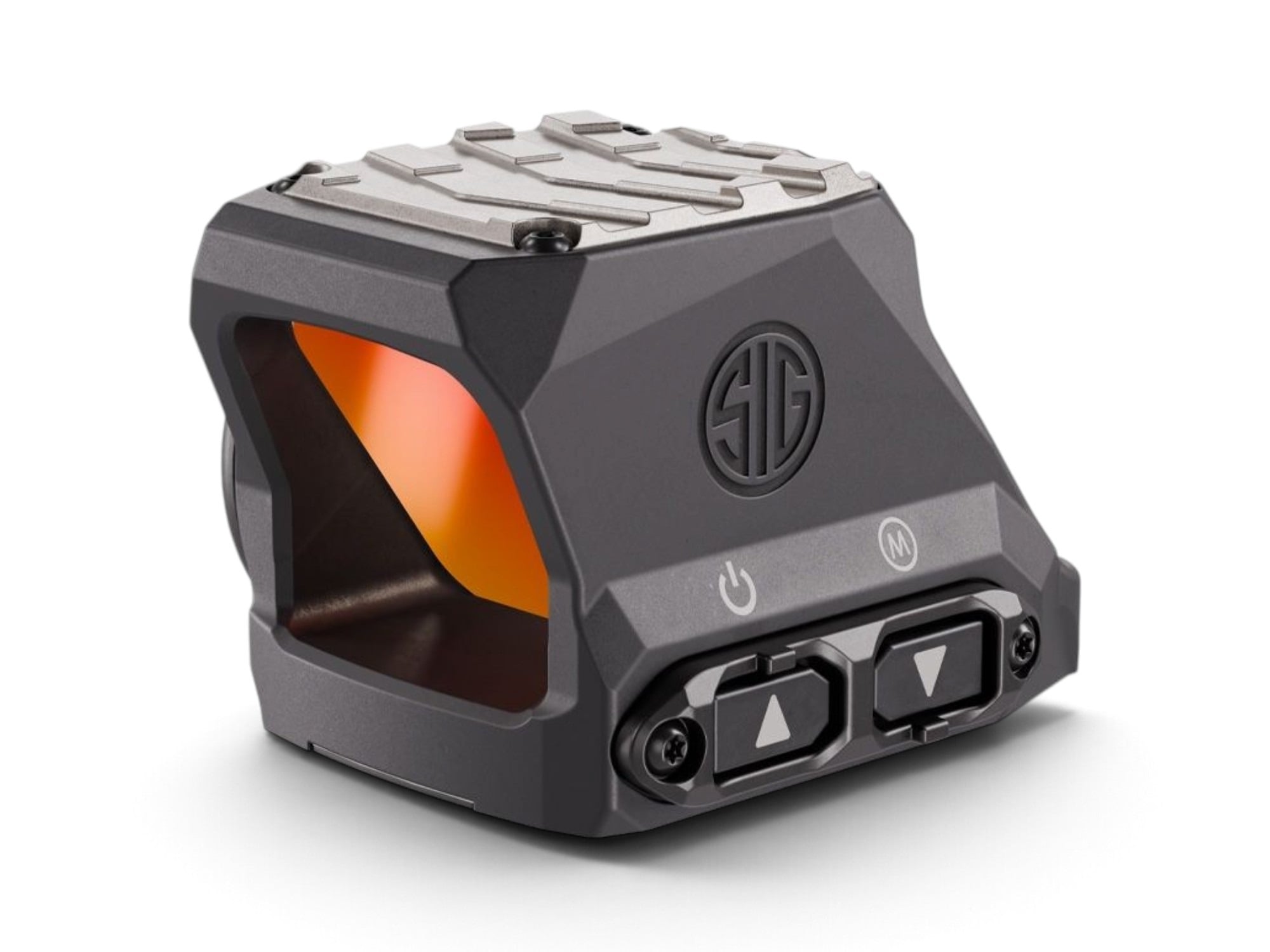

Sig Sauer XRAY5 Enclosed Compact Matrix Red Dot Sight
3 in stock
Description

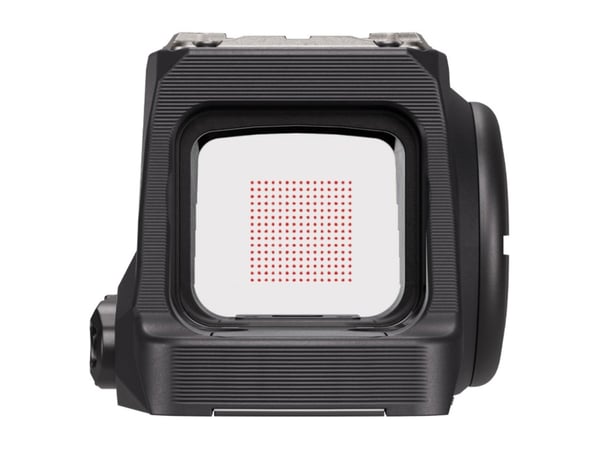

The Sig Sauer XRAY5 Enclosed Compact Matrix Red Dot Sight is a solid-state pistol optic built around a 225-dot matrix rather than the LED and tilting-mirror arrangement used in conventional reflex sights. With no moving internal components, the aiming point is generated electronically, and zeroing is handled digitally through button inputs or the XRAY5 app. The fully enclosed, argon-purged emitter window keeps rain, lint, and carry debris away from the optical path.
Cut for the Shield RMSc footprint, the XRAY5 Compact suits slim and compact carry pistols as well as duty guns running an adapter plate. Shooters who want saved zero profiles across multiple hosts, a round counter for maintenance tracking, and illumination that reacts to ambient light will get the most out of it.
Sig Sauer XRAY5 Enclosed Compact Matrix Red Dot Sight Features
- Solid-state 225-dot matrix with no moving parts, removing the mechanical wear and drift points found in traditional reflex designs
- Zero Distortion Optic system paired with a 24mm clear aperture for a clean, undistorted view through the window
- Digital zeroing through button presses or the XRAY5 app, with multiple zero profiles that can be stored and recalled instantly
- LightFight adaptive illumination plus MOTAC motion activation, so the dot matches the light you are shooting in and shuts down when the pistol sits idle
- Fully enclosed, argon-purged housing rated IPX-8 to 40 meters for wet weather, lint-heavy concealed carry, and hard training use
- 7075 aluminum body with a Grade 5 titanium lens shield and a side-loading CR2032 tray that keeps the battery swap off the pistol
- Built-in round counter with reset function for tracking shots fired between maintenance intervals
Specifications
- Condition: New
- Manufacturer: Sig Sauer
- Model: XRAY5 Enclosed Compact Matrix Red Dot Sight
- SKU: SOX54300
- Optic Type: Enclosed solid-state matrix red dot
- Dot Size (MOA): 3.5
- Reticle: Red dot
- Footprint: Shield RMSc (Compact)
- Mount Type: Top mount
- Adjustment Method: Digital, button presses or XRAY5 App
- Total Elevation Travel: 80 MOA
- Total Windage Travel: 80 MOA
- Clear Aperture: 24 mm, measured diagonally
- Illumination Settings: 15 (13 day, 2 night vision)
- Battery Type: (1) CR2032
- Battery Life: Up to 10,000 hours
- Housing Material: 7075 aluminum with Grade 5 titanium lens shield
- Finish Type: Black anodized
- Waterproof Rating: IPX-8, 40 meters
- Overall Length: 1.74 in
- Overall Width: 1.32 in
- Height: 1.20 in
